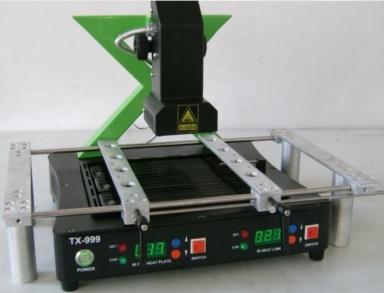

DGC TX-999 DM 2IN1 DIGITAL INFRARED SYSTEM

DESIGN AND CAPABILITIES PATENTED

BGA/IRDA/IFR/SMD/SMT WELDER

REWORK SOLDERING STATION

                                                                       Check this Video about this Station













Feature:

★. (1) Use of infrared welding technology which is developed independently.

★. (2) This machine is equipped with laser positioning and adopt 180°rotational lamp structure with flexible operation and easy control. It is suitable for any point of a plat component, especially BGA, SMD component.

★. (3) Break through the traditional hot welder heating element removed cover, thermal shock big shortcoming. Technically use infrared heat lamp. Heat is easy to pierce and distribute evenly. Infrared heating do not have sirocco flow. So do not impact perimeter small component.

★. (4) This machine has 900W heating system. It can be used to unsolder BGA, SMD, CSP, LGA, QFP and PLCC, especially Micro BGA and SMD elements.

★. (5) Don't need weld tools. This machine can weld all the plat components. Definitely can satisfy the demand to sealing off or repair the BGA of the computer, the notebook and the playstation and so on.

★. (6) Easily operate. Just need one day training to operate this machine.

Weight: Around 13 Kilo with Packing

Main Parameter:

Main Components:

Description of function about main parts:

(1) Main Body

(2) Front Panel

(3) Back Panel

(4) Lamp Body

This is a brand new, Model DGC TX-999 DM soldering/rework station from Dragon Group China , an entry level desoldering/soldering rework station for surface or hole mount components. With TX-999 DM you get the perfect balance between power needed, preheating area and top heat flow. Intensity and Zonal Heat is totally obtained by the new Framed Tube Technology for the top heating. , you get a temperature controlled rework welder station with all the enhancements including IRDA preheating surface divided in 3 long panels, Infrared centered or dissipated preheating.

All controllers are fully digital.

FOR BGA , use the IRDA Ceramic preheating plate and your Infrared light gun for the Mini BGA chips or chips secured by hooks in the middle of the chips, for turbo car chips or controlling speed chips is special to mount, dismount and make controlling boards.

This rework station is ESD-Safe  and it is made of metal and coated with a static-dissipative paint and allows for Soldering and desoldering BGA, Mini BGA, QFP, SOP, PLCC or SOJ.

PROTECTED AND AUTHORIZED BY PATENT CN 301433015 S
