T-862++ DGC 3IN1 DIGITAL INFRARED SYSTEM

BGA/IRDA/IFR/SMD/SMT WELDER

ADVANCED REWORK REFLOW SOLDERING STATION

USES: LAPTOP BOARDS - VIDEO COMPONENTS - 3D CHIPS - 20 TO  35 MM

                                                                           Check this Video about this Station









          Features

★. (1) Use of infrared welding technology which is developed independently.

★. (2) Use of an infrared heat lamp. Heat is easy to pierce and distribute evenly,which           overcome disadvantage (burn out elements) of traditional welding machines.

★. (3) Easy operation. You just need one-day training and you can operate it skillfully.

★. (4) No need for unsolder tools. IRDA Welder T-862++ can unsolder all the elements           between 18-34mm.

★. (5) This machine has 800W hot-melt system.Its preheating area is 120×120mm.

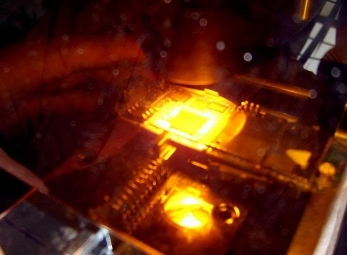

★. (6) Infrared heating without heated air flowing. No impact on circumjacent small           elements.It is suitable for all of the elements,especially Micro BGA elements.

                               Technical Parameters

  Working voltage

  AC220V   50Hz

  Output power

  800W

  Temperature

  100ºC - 350ºC

                                     List of content

  Welder base

1

  Guide rod

1

  Locating ring

1

  Lamp assy

1

  Circuit Board(PCB) support

1

  Power Cable

1

  Soldering iron

1

  Soldering iron support

1

  User manual

1

Description of the main parts

(1) Main Body

(2) Front Panel

(3) Back Panel

(4) Focusing Support



IT DOES CHIPS UNTIL 34mm, TOPS 37mm WITHOUT LENSES. THE PLATE IS 120 * 120mm the equipment is SOLDERING IRON, IRDA HEATING PLATE AND INFRARED BEAM ONLY.  IS MIDDLE CLASS PRICE, BUT WILL HAVE LENSES ON THE BOTTOM OF THE BEAM. HAS 2 LENSES TO GRADUATE TEMPERATURES. THIS MACHINE DOES YOUR HEATING SOLDERING,  LAPTOPS, MEDIUM BOARDS AND ALL THE MINI ONES.
